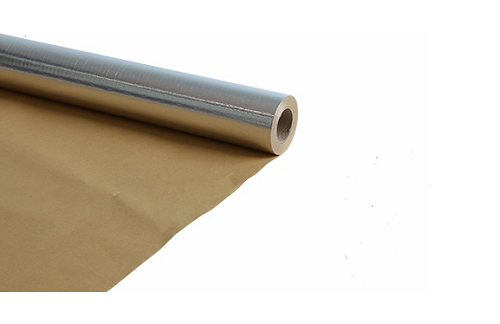

FOIL SCRIM-KRAFT FACING

Foil Scrim-Kraft Facing is suitable for a wide variety of applications. It can be used as insulation and vapor barrier layer for numerous insulation materials, offering good aging resistance and corrosion resistance. Our facings are designed with proprietary flame retardant chemistry to meet demanding fire codes and standards.

Construction

Facing Composition	Description	FSK60A Value (Metric)	FSK50B Value (Metric)	FSK50AR Value (Metric)
Foil	Aluminum	7 micron	7 micron	7 micron
Reinforcing	Fiberglass	8 /100mm- MD	8 /100mm- MD	8 /100mm- MD
		12 /100mm- XD	8 /100mm- MD	12 /100mm- XD
Adhesive	Polyethylene
Kraft	Natural	60gsm	50gsm	50gsm

Typical Physical Property

Physical Property	Test Method	FSK60A Value (Metric)	FSK50B Value (Metric)	FSK50AR Value (Metric)
Basic Weight	Scale	85gsm	85gsm	80gsm
Permeance (WVTR)	ASTM E96	5.75 ng/N.s	5.75 ng/N.s	5.75 ng/N.s
Tensile Strength - MD	ASTM D828	116 N/25mm	116 N/25mm	100 N/25mm
Tensile Strength - XD	ASTM D828	240 N/25mm	250 N/25mm	50 N/25mm
Burst Strength	ASTM D774	30 N/cm2	30 N/cm2	30 N/cm2
Temperature Resistance	ASTM C1263	-29 °C/+66 °C	Remains Flexible No Delamination	Remains Flexible No Delamination
Dimensional Stability	ASTM D1204 @150F(65C)	Less than 0.5%	Less than 0.5%	Less than 0.5%
Emissivity	ASTM E408	0.03
Fire Rating	BS 476	Class 0
Reflectivity of foil surface	BS 476	97%	97%

Roll width: 1.0m, 1.2m, 1.25m
Roll length from 60m up to 2800m.

Remarks:

Above data are typical results and not the guaranteed performance.
Tolerance: Weight and Thickness: ±10% Width: ±2mm Length: ±0.5%.
The products should be stored at room temperature away from chemical, wet and heat source. Rolls should never be stored in direct contact with the ground or on concrete slabs.
Please do trial-application and make sure the product can serve the specific application before actually put it to use.

Should there be any further inquiries, please do not hesitate to contact us!
