Trident Chill Air Dryer With 40 Bars

Trident Chill Air Dryer With 40 Bars

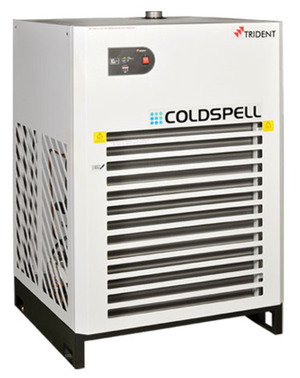

Behold the Chill Air Dryer 40 Bar, an unrivaled champion in high-pressure drying systems. Designed by Trident - Vu Anh for industrial environments operating at 40 bar, this powerhouse dryer offers unmatched capacity and filtering capabilities.

With its robust construction and state-of-the-art technology, Trident - Vu Anh guarantees this machine possesses the maximum function of moisture removal, safeguarding your equipment and processes from corrosion and contamination. Embrace the commanding presence of 40 bar and elevate your drying performance to unprecedented levels with the Chill Air Dryer 40 Bar.

1. General information:

Refrigerated and heatless are two broad categories of air dryers available these days. Talking about air dryers remains incomplete without mentioning the concept of dew point temperature. It is the unit used to measure the dryness of compressed air. At this temperature, the moisture present in the compressed air in vapor form condenses to form a liquid.

Similarly, pressure dew point temperature and atmospheric dew point temperature are the two distinct temperatures of compressed air when under any kind of pressure and atmospheric pressure respectively. When we talk about the most advanced and cheapest mode of drying compressed air, refrigerated air dryers are quintessential.

2. The operational process:

The principle on which refrigerant air dryer manufacturing takes place and subsequently works is that:

• Cooling of compressed air cause condensation of water that is carried by the compressed air in vapor form
• The cooling takes place in two stages in the refrigerated type of air dryer. Specifically, the compressed air enters the refrigerated type of air dryer at about 40 degree Celsius. It enters the pre-cooler first wherein the outgoing cool-dry air cools the incoming hot-wet air. The outgoing cool-dry air on the other hand is heated up to an operating temperature of about 28-32 degrees Celsius. This partially cooled hot-wet air then enters the evaporator where it is chilled down to a temperature of about 2-8 degrees Celsius. The chilling down of the hot-wet air condenses the moisture bored by the air in vapor form.
• Next, the chilled air bearing condensed moisture is subjected to the moisture separator, which is a mechanical equipment that helps separate the condensed moisture from the air by mechanical activity. The moisture separator drains out the moisture via an automatic drain valve. This cool-dry air is then passed through the pre-cooler as mentioned above.
• In a nutshell, this process produces dry air which can be obtained through the outlet. This dry air is of a pressure dew point temperature of about 4 degree Celsius or as required but above 2 degrees Celsius. The amount of power consumed by drying air in the refrigerated air dryers is approximately 5.0 Kwh for 1000 cubic feet per minute of air.

3. Trident speciality:

An ideal solution for clean and compressed dry air is provided by Trident, one of the experts among refrigerant air dryer manufacturers.

Extensive design strategies and prototype testing culminate in Trident’s amazing products that offer a constant dew point of +3 degrees Celsius.

The HX series of Trident offers a very low running cost, unlike the other air dryers. In detail, some exclusive features of these products are:

• The cold dry compressed air passes back through the secondary side of the Air to Air heat exchanger where it is reheated by the incoming warm air.
• Reheating the outgoing compressed air increases the volume of the air enabling it to do more work and it also prevents downstream pipe sweating.
• The trident heat exchanger has no extended surfaces or sharp corners that collect dust, dirt, or oil residue. Their self-cleaning smooth surface tube in shell and tube design will maintain the same heat transfer efficiency throughout the dryers life. Any dust, dirt, or oil will be washed off from the air system along with the condensed moisture at the De-mister.

As a guarantee for functionality, our chill air dryer is committed to giving the most satisfying experience for customers with the following advantages:

• Maintaining of a consistent pressure dew point.
• Control of the condensing temperature for atmospheric variations in temperature.
• The safety of compressor provided by the HP cut switch.
• The advanced mimic display that indicates the functions and faults if any.
• The provision of Trident automatic drain valve in Demister and Heat exchangers for efficient dryer functioning.

Don't compromise when it comes to high-pressure drying. Elevate your operations with the Chill Air Dryer 40 Bar, the ultimate solution for industrial environments operating at maximum pressure. As Trident - Vu Anh has implemented state-of-the-art technology, our dryer guarantees impeccable moisture removal, safeguarding your equipment and processes. Experience the power of 40 bar and unlock a new level of performance with the Chill Air Dryer 40 Bar.
