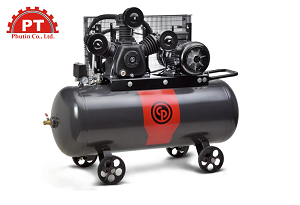

CHICAGO PNEUMATIC PISTON AIR COMPRESSOR

The Chicago Pneumatic Piston Air Compressor is a reliable and high-volume compressed air provider. It is widely used in various social, production, and business settings. If you are not familiar with this line of air compressors, let's explore the structure, operating principle, and advantages of the Chicago Pneumatic Piston Air Compressor in the following article!

Chicago Pneumatic Piston Air Compressor Structure:

• Motor: Powers the other components.
• Compressor head: Where the air compression process occurs, consisting of cylinders, pistons, bearings, etc.
• Safety valve: Ensures the safety of the compressor system by preventing sudden pressure increases.
• Drain valve: Removes water and steam from the compressed air, ensuring 100% cleanliness.
• Pressure gauge: Displays the compressed air pressure in the tank for easy monitoring.
• Belt, pulley: Transmits mechanical energy from the motor to the compressor.
• Filter: Limits dust and dirt from entering the machine.
• Oil tank: Provides continuous lubrication for the piston system.
• Compressed air tank: Stores the generated compressed air volume.
• Other details include electrical boxes, relays, wheels, pull handles, etc.

Chicago Pneumatic Piston Compressor Working Principle:

• The compressor works based on reciprocating pistons connected to a connecting rod and crank mechanism.
• The piston moves down, sucking in outside air into the compressor head.
• When the piston moves up, it compresses the air, increasing the pressure. The exhaust valve opens, allowing the air to escape to the compressed air system.
• For 2-stage piston compressors, the compressed air is cooled before being compressed again in another cylinder.

Applications Of Chicago Pneumatic Piston Air Compressor:

• Industrial spray painting: Used for painting surfaces like metal and wood.
• Food, beverage, medical industry: Used in drug production, drying, evaporation, packaging, etc.
• Vehicle and machine repair and maintenance: Provides compressed air for car wash compressors, oil vacuums, etc.

Chicago Pneumatic Piston Air Compressor Specifications:

CPRA piston compressor - CPRB:

• Flow: 180 - 340 liters/minute
• Power: 1.5 - 3 HP
• Working pressure: 8 - 10 bar
• Container: 0 - 200 liters

CPRC-CPRS piston air compressor:

• Flow: 201 - 486 liters/min
• Power: 2 - 4 HP
• Working pressure: 10 bar
• Tank: 27 - 270 liters

CPRD - CPRO - CPRS piston compressors:

• Flow: 514 - 2420 liters/min
• Power: 4 - 25 HP
• Working pressure: up to 15 bar
• Container: up to 900 liters

Chicago Pneumatic Piston Air Compressor Advantages:

• High compression ratio
• High-grade electrostatic powder coating for an attractive appearance and metal shell oxidation prevention.
• High capacity and pressure for fast and stable air compression
• Affordable price
• Easy to repair and move
• Energy-efficient, saving fuel and electricity
• Continuous operation with high frequency, minimizing damage.

If you need further information, please feel free to contact us!
