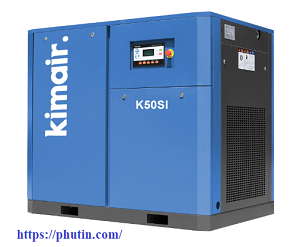

KIMAR SCREW AIR COMPRESSOR

Kimar Screw Air Compressor is one of the most advanced product lines available on the market, as the brand's quality has been confirmed by customers. The entire production technology undergoes careful testing to ensure that the output product has excellent quality and durability.

Outstanding features of Kimar Screw Air Compressors:

• Utilizes high-speed SKF bearings and precision machined screws.
• Equipped with high-grade raw material compressed air inlet filters that provide 99.9% cleaning and 3-micron purity.
• The water after the filtration system meets drinking water standards, ensuring clean compressed air.
• Waste water does not require special treatment and is environmentally friendly.
• Made from high-quality materials with a special and impressive design.
• Guaranteed long-lasting performance and maximum durability.

Structure of Kimar Screw Air Compressor:

1. Compressor head: Responsible for compressing air from low pressure to high pressure and circulating cooling oil throughout the machine.
2. Main motor: Typically a 3-phase motor with a frequency of 50Hz in the oil screw compressor structure.
3. Oil separator: Where the mixture of gas and oil is placed by the compressor.
4. Minimum pressure valve: Creates pressure in the oil separator to allow oil circulation during engine idling.
5. Inlet air filter: Removes impurities and dust before entering the compressor.
6. Inlet valve: Helps the compressor change running speed and prevents oil from overflowing into the air filter when the machine stops working.
7. Transmission compartment: Transmits movement from the machine's engine to the two screw head shafts. Consists of a gearbox and coupling, connecting the engine and compressor.
8. Cooling fan: Responsible for cooling the oil and gas units.
9. Water separator: Condenses water when hot air passes through the cooler.
10. Automatic drain valve: Discharges water from the screw compressor water separator when it reaches a certain threshold set by the operator.
11. Air compressor total valve: Isolates the machine from the external air compression system.
12. Oil cooler: Cools the air compressor oil before returning it to cool the compressor for the next process.
13. Oil gas separator: Retains oil and allows compressed air to escape. Constructed with a steel shell and a filter core made of layers of glass paper.
14. Oil filter: Filters impurities from the cooling oil before it enters the compressor head.
15. Thermostat valve: Transfers oil to the cooling place or directs oil to the compressor head, depending on the ambient temperature and oil in the air compressor.

Principle of Kimar Screw Air Compressor:

• Operates on the principle of articulation, where the volume of the chambers changes during the matching process.
• The two screws rotate in opposite directions during operation. The suction and compression process occurs accordingly.
• When the screws rotate rapidly, air is drawn into the shell through the inlet and compressed between the teeth in the air chamber between the screws. The compressed air is then discharged through the outlet. The inlet and outlet ports open and close automatically as the screw rotates.
• A check valve is installed at the outlet of the screw air compressor to prevent air flow reversal and ensure that the air flows in a specific direction, avoiding compressed air leakage.

Applications of Kimar Screw Air Compressors:

• Manufacturing industry: Used for manufacturing, repairing, or supplying gas to other equipment.
• Control of automatic systems, vacuum packaging for food preservation, and dust cleaning.
• Commonly used in metallurgy, printing, manufacturing, and more.
• Mining industry: Provides clean oxygen for long-term underground mining, depth exploration, and power for gas-powered equipment.
• Food and beverage industry: Supplies compressed air for automatic production lines, cleaning packaging, molds, and rapid food cooling.
• Car maintenance industry: Provides compressed air for car cleaning, especially in hard-to-reach areas. Helps prevent rust, electric shock, and water damage to the engine.
• Construction industry: Utilizes compressed air for concrete transportation or spraying, ventilation, oxygen supply during long-term underground work, and provides compressed air for drills, nail guns, etc.
• Amusement and entertainment: Used for creating fountains, inflating hot air balloons, rubber boats, inflatable boats, etc.

If you require further information, please do not hesitate to contact us!
