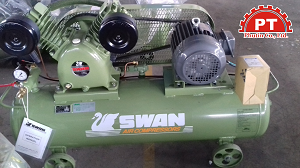

SWAN PISTON AIR COMPRESSOR

The Swan Piston Air Compressor has quickly gained a large customer base due to its numerous advantages that set it apart from other air compressors. Let's explore the details in the article below!

Structure of Swan Piston Air Compressor

• Cylinder: Creates a space to attract and compress air for supplying other equipment.
• Compressor head: The most important part of piston compressors.
• Reservoir: Stores the volume of compressed air produced by the machine. It also adjusts the compressed air pressure to supply tools and machines that use compressed air.
• Valve system: Includes 1 drain valve and 1 one-way valve to ensure stable operation and safety of the pneumatic system.
• Air filter system: Prevents dirt from entering the machine, ensuring smooth operation of the piston compressor system.
• Pressure gauge: Monitors the pressure in the air compressor.
• Pressure relay: Automatically opens and closes according to the pre-set program in the machine.
• Motor: An essential part for the machine to function properly.

Working principle of Swan air compressor

1-stage 1-way air compressor:

• The piston reciprocates thanks to the connecting rod and crank mechanism. When the piston moves to the right, the volume (V) gradually increases, pressure (P) decreases, and the intake valve opens, allowing outside air to enter the cylinder for the intake process.
• When the piston moves to the left, the air in the cylinder is compressed, pressure (P) gradually increases, the intake valve closes, and when the pressure (P) exceeds the spring tension, the exhaust valve automatically opens, allowing compressed air to pass through the exhaust valve and into the compressed air tank.
• This process is repeated to supply compressed air.

2-stage 1-way air compressor:

• When the piston goes down, the volume above the piston increases, pressure (P) decreases, and intake valve No. 7 opens, allowing air to be charged above the piston. At the same time, the volume under the piston decreases, pressure (P) increases, and exhaust valve No. 8 opens, allowing gas to flow through the pipeline into the container.
• When the piston goes up into the space below the piston, pressure (P) decreases, intake valve No. 7 opens, air is loaded into the cylinder, and the volume (V) above the piston becomes smaller. Pressure (P) increases, exhaust valve No. 8 opens, compressing the air above the piston and pushing it into the reservoir.
• This process is repeated to supply compressed air.

Applications of Swan Piston Air Compressor

• Car repair: Provides air for pumping tires, removing screws, supporting grease pumps, etc.
• Car wash: Helps dry the car and provides gas for creating air bubbles, spraying dust and water during car washes, etc.
• Carpentry workshops, mechanical workshops: Provides misting and nail guns, among other applications.
• Mining: Helps with depth probing and mineral transport when compressed in the piston machine.
• Food processing: Supports aeration (with oil-free air compressors), packaging, and food-related processes.
• Aquaculture: Supports aeration and foaming to facilitate breeding.
• Manufacturing industry: Supplies compressed air to automatic machines.

Advantages of Swan Piston Air Compressor

• Provides pure compressed air free of impurities, oil vapors, and unpleasant odors.
• Made from high-quality materials for a long lifespan and minimal damage.
• Offers a variety of types with stable and durable performance.
• Compact design with integrated flexible wheels for easy movement on any terrain.
• Simple structure, easy to use with instructions from technical staff.
• Smooth operation with reduced noise and vibration thanks to the soundproof shell.

If you have any further inquiries, please do not hesitate to contact us!
