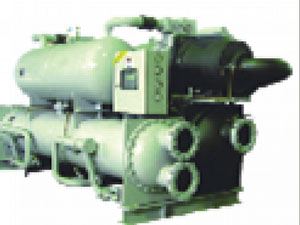

KLFW R 134A FLOODED CHILLER

Product Introduction:

Specification table

Standard Specification:
- Inlet cold water temperature: 12 ℃
- Outlet cold water temperature: 7 ℃
- Inlet cooling water temperature: 30 ℃
- Outlet cooling water temperature: 35 ℃
If customers have special requirements for specifications, please inform before ordering.

Categories

Model	KLFW-200S	KLFW-225S	KLFW-250S
Power supply	3Φ - 380V- 50Hz	3Φ - 380V- 50Hz	3Φ - 380V- 50Hz
Refrigerating capacity	604,800	680,400	756,000
Power consumption (kW)	130.0	141.8	157.5
380V Running ampere (A)	219	239	266
380V Running ampere (A)	2185	2470	2700
Capacity control (%)	25% ~ 100%	25% ~ 100%	25% ~ 100%
Compressor	Type: Screw semi-hermetic	Type: Screw semi-hermetic	Type: Screw semi-hermetic
Compressor Quantity	1	1	1
Starting method	Y-△	Y-△	Y-△
Revolution (r.p.m)	3550	3550	3550
Output Wattage (kW)	300	300x2	300x2
Crankcase heater (W)	62x2	62x2	62x2
Refrigeration oil	Type: HBRB08-120	Type: HBRB08-120	Type: HBRB08-120
Refrigeration oil Quantity (L)	28	28	28
Ga lạnh (Refrigerant)	Type: R-134a	Type: R-134a	Type: R-134a
Ga lạnh (Refrigerant) Quantity (kg)	220	248	275
Control	Electronic Expansion Valve + Orific Plate	Electronic Expansion Valve + Orific Plate	Electronic Expansion Valve + Orific Plate
Chiller	Type: Flooded Type	Type: Flooded Type	Type: Flooded Type
Chiller Quantity	1	1	1
Water flow rate (m3/h)	121.0	136.1	151.2
Head loss (m)	3.5	3.5	3.5
Pipe size (B)	5B	6B	6B
Condenser	Type: Shell and Tube	Type: Shell and Tube	Type: Shell and Tube
Condenser Quantity	1	1	1
Water flow rate (m3/h)	Propeller type	Propeller type	Propeller type
Head loss (m)	0.3x2	0.59x2	0.59x2
Pipe size (B)	5B	6B	6B
Protection devices	High / low pressure switch, Antifreeze switch and Safety valve, Overload protection device, Over-heating coil protection device, Automatic temperature switch, Reverse-phase protection device, Level switch lubricant.
Dimensions (A) (mm)	4100	4200	4250
Dimensions (B) (mm)	1120	1120	1120
Dimensions (C) (mm)	1800	1800	1850
Dimensions (D) (mm)	3650	3650	3650
Dimensions (E) (mm)	1020	1020	1020
Dimensions (G) (mm)	1500	1550	1600
Net weight (kg)	4100	4500	4700
Operating weight (kg)	4450	4850	5100
