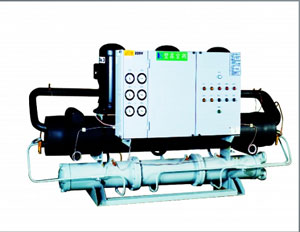

KLSW D WATER CHILLER

Product introduction:

Specification table

1. Standard specifications:

Inlet cooling water temperature: 30 ℃, outlet: 35 ℃.
The difference between inlet and outlet of Cacl2 solution is 3 ℃.

2. If customers have special requirements for specifications, please inform before ordering.

Electricity supply

3 phase - 380V -50HZ

Brine Outlet temp

	-25oC	kcal/h	kw	-30oC
040S-D	42,226	49.1	33,970	39.5
050S-D	52,460	61	42,226	49.1
060S-D	64,414	74.9	51,772	60.2
080S-D	78,346	91.1	62,592	73.2
100S-D	111,026	129.1	89,192	103.7

Power Consumption(-25oC)

kW	040S-D	050S-D	060S-D	080S-D	100S-D
25.8	24.7	31.2	38.0	46.6	65.0

Power Consumption(-30oC)

kW	040S-D	050S-D	060S-D	080S-D	100S-D
24.7	29.8	36.4	44.6	62.7

380V Operating electric

A	040S-D	050S-D	060S-D	080S-D	100S-D
44/55	53/67	65/82	80/100	111/139

380V Starting electric

A	040S-D	050S-D	060S-D	080S-D	100S-D
137	168	205	250	348

Capacity control

4 levels of power control 100, 75, 50, 25, 0

Compresor

Type: Máy nén trục vít - kiểu bán kín
Quantity: 1
Starting mode: Y-△ Star-delta
Round tassels: R.p.m 2950
Oil heating resistor: W 150, 300
Cooling diesel: Type FS150R, Quantity L 9, 11, 11, 13, 13
Refrigerant: Type R-22, Quantity kg 20, 25, 30, 40, 50
Throttle type: External balancing thermostatic valve

Evaporator

Type: Horizontal beam tube
Quantity: 1
Glycol flow: m3/h 21.9, 27.2, 33.4, 40.6, 57.6
Pressure loss: M 3.0, 3.0, 4.0, 4.0, 4.5
Pipe Diameter: DN80, DN80, DN100, DN100, DN125

Condenser

Type: Horizontal beam tube
Quantity: 1
Cooling water flow: m3/h 20.8, 25.8, 31.6, 37.3, 52.6
Pressure loss: M 2.0, 2.0, 3.0, 3.0, 3.8
Pipe diameter: DN65, DN65, DN80, DN80, DN100

Protection devices

High-voltage and low-voltage protection relays, antifreeze switches, overload protection relays, reverse-phase protection, temperature controllers

Net weight

040S-D: ? kg
050S-D: 1500 kg
060S-D: 1550 kg
080S-D: 1860 kg
100S-D: 2340 kg

Operating weight

040S-D: ? kg
050S-D: 1650 kg
060S-D: 1700 kg
080S-D: 2020 kg
100S-D: 2500 kg

Please contact KUEN LING Refrigeration Equipment Co., Ltd. Vietnam right away to receive good product with competitive price.
