KLFW R 22 Flooded Chiller

(0) 0 Reviews 0 Orders 0 Wish listed

Lead time	15 - 30 days (estimated)
Customization	OEM/ODM (MOQ 500) Customized logo (MOQ 500)
Shipping	Sea freight • Air freight • Express

Quantity :

Total price :

(Tax : )

WhatsApp Zalo

Product specifications

Brand name

KUEN LING Machinery Refrigerating (Viet Nam) Company Limited

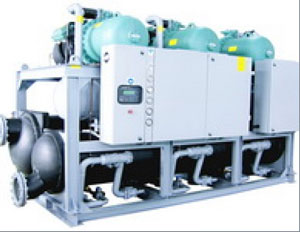

KLFW R 22 FLOODED CHILLER

Product introduction:

Specification table

1. Standard specification:

Inlet cold-water temperature 12 ℃, outlet 7 ℃, inlet cooling water temperature 30 ℃, outlet 35 ℃.

2. If customers have special requirements for specifications, please inform before ordering.

Categories

Model	KLFW-100S	KLFW-120S	KLFW-140S
Power supply	3Φ - 380V- 50Hz	3Φ - 380V- 50Hz	3Φ - 380V- 50Hz
Refrigerating capacity	kW	365.1	401.1	483.1
	kcal/h	313,900	344,860	415,380
Power consumption	kW	73.0	80.2	95.8
380V Operation electric	A	126	138	165
380V Starting electric	A	315	346	414
Capacity control	%	4-Step capacity control (25%~100%)
Compressor	Type	Screw semi-hermetic
	Quantity	1
Starting method	Y-△
Revolution	r.p.m	3550
Output	kW	300	300x2
Crankcase heater	W	62X2
Refrigeration oil	Type	HBRB08-120
	Quantity	oz	28	28	28
Refrigerant	Type	R-134a
	Quantity	kg	220	248	275
Control		Orific Plate
Chiller	Type	Flooded Type
	Quantity	1
Water flow rate	m3/h	121.0	136.1	151.2
Head loss	m	3.5
Pipe size	B	5B	6B
Condenser	Type	Shell and Tube
	Quantity	1
Water flow rate	m3/h	Propeller type
Head loss	m	0.3×2	0.59×2
Pipe size	B	5B	6B
Protective devices		High / low pressure switch, Antifreeze switch, Safety valve, Overload protection device, Over-coil protection device, Automatic temperature switch, Reverse-phase protection device, Lubricating oil level switch
Dimensions	A	mm	4100	4200	4250
B	mm	1120	1120	1120
C	mm	C	1800	1850
D	mm	3650	3650	3650
E	mm	1020	1020	1020
G	mm	1500	1550	1550

Please contact KUEN LING Refrigeration Equipment Co., Ltd. Vietnam right away to receive good product with competitive price.

KUEN LING Machinery Refrigerating (Viet Nam) Company Limited

KUEN LING Machinery Refrigerating (Viet Nam) Company Limited is a branch of KUEN LING Machinery Refrigerating Co., Ltd. We specialize in providing a wide range of refrigeration solutions including water-cooled screw chillers, air-cooled heat pump / air-cooled chillers, centrifugal chillers, flooded chillers, water cooled screw-type brine units, water source heat pump screw units, air-cooled module units, industrial box unit, air source hot water units, water chiller, heat pump direct expansion air-cooled air conditioning units, condensing units, industrial shell and tube heat exchangers, air-conditioning boxes, and other air-conditioning fan coil accessories.
