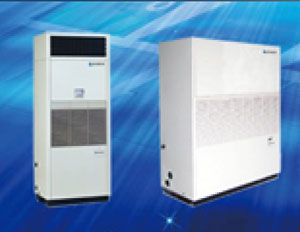

AHU KHP Floor Standing Type Air Handling Equipment

(0) 0 Reviews 0 Orders 0 Wish listed

Lead time	15 - 30 days (estimated)
Customization	OEM/ODM (MOQ 500) Customized logo (MOQ 500)
Shipping	Sea freight • Air freight • Express

Quantity :

Total price :

(Tax : )

WhatsApp Zalo

Product specifications

Brand name

KUEN LING Machinery Refrigerating (Viet Nam) Company Limited

AHU KHP FLOOR STANDING TYPE AIR HANDLING EQUIPMENT

Product Introduction

Specification table

1. Design Parameters

Cooling mode: Inlet air temperature 27 ℃ DB, 19.5 ℃ WB. Intet cold water temperature is: 7 ℃, outlet: 12 ℃.
Heating: Inlet air temperature 21 ℃. Inlet hot water temperature is: 60 ℃.

2. If customers have special requirements for specifications, please inform before ordering

Categories

KHP	051A	052B	081A	082B	101A	102B	151A	152B	201A	202B
Electricity supply	3 pha - 380V -50HZ
Cooling capacity	kw	17.4	17.4	27.9	27.9	34.9	34.9	52.3	52.3	69.8	69.8
	kcal/h	15,000	15,000	24,000	24,000	30,000	30,000	45,000	45,000	60,000	60,000
Wind flow	CMH	2580	2580	4800	4800	5400	5400	7500	7500	10200	10200
External static pressure	mmAq	10	10	10	10	10	10	15	15	15	15
Coil	TĐN Area	Ft2	0.431	0.431	0.636	0.636	0.636	0.636	0.828	0.828	1.164	1.164
	Type (Φ)	Type	3/8"
	RowxFin	RxF	3x15	3x15	3x15	3x15	4x15	4x15	4x15	4x15	4x15	4x15
Fan	Type	Type	10R	10R	9RX2	12RX2	12RX2	12RX2	12RX2	12RX2	12RX2
Motor	HP	1/3	1/3	1.0	2.2	2.2	2.2	2.2	2.2	2.2
	RLA.Amp	A	0.42	0.42	0.93	0.93	0.93	0.93	2.8	2.8	2.8	2.8
Inlet cold water pipe	inch	1	1	1-1/4	1-1/4	1-1/2	1-1/2	2	2	2	2
Outlet cold water pipe	inch	1	1	1-1/4	1-1/4	1-1/2	1-1/2	2	2	2	2
Water tube	inch	3/4"
Dimensions	Length A	mm	806	806	1178	1178	1178	1178	1549	1549	1735	1735
	Width B	mm	520	520	520	520	520	520	637	637	637	637
	Height C	mm	1910	1910	1910	1674	1910	1674	2077	1837	2077	2077
Weight	kg	110	110	180	180	200	200	300	300	390	390

Please contact KUEN LING Refrigeration Equipment Co., Ltd. Vietnam right away to receive good product with competitive price.
