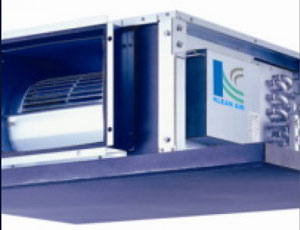

AHU KHW CEILING SUSPENDED TYPE AIR HANDLING EQUIPMENT

Product introduction:

Specification table

Design parameters are based on:
- Cooling mode: Inlet air temperature 27 ℃ DB, 19.5 ℃ WB. Outlet cold water temperature is: 7 ℃, output 12 ℃
- Heating: Inlet air temperature 21 ℃. The hot water inlet temperature is: 60 ℃.
If customers have special requirements for specifications, please inform before ordering.

Electricity supply

3 pha - 380V -50HZ

Cooling capacity

kw	Btu/h
7.0	24,000
10.5	36,000
14.0	48,000
17.5	60,000
21.0	71,700
28.0	95,600
35.0	119,600
42.0	143,500
52.3	178,600

Wind flow

CMH
1300
2000
2700
3000
3600
4760
5600
7140
8920

External static pressure

mmAq
8
8
10
10
10
15
15
15
15

Coil assembly

TĐN Area	Ft2
0.216	0.216
0.387	0.387
0.387	0.387
0.387	0.387
0.580	0.580
0.580	0.580
0.580	0.580
0.580	0.580

Type (Φ)

Type	RowxFin
1/2"	RxF
3x10	4x10
3x10	4x10
4x10	4x10
4x10	4x12
4x12	4x8
4x8	6x10
6x10	6x10

Fan

Type	Motor
Type	AT9X9
Type	AT9X10
Type	AT10X2
Type	AT9X10X2
Type	AT9X10X2
Type	AT9X10X2
Type	AT9X10X2
Type	AT9X10X2
Type	AT9X10X2

Motor

HP	RLA.Amp
1/4	0.28
1/4	0.28
1/4	0.28
1/3	0.40
1/3	0.40
3/4	1.0
3/4	1.0
1	1.5
2	2.8

Inlet cold water pipe

inch
3/4
3/4
1-1/4
1-1/4
1-1/4
1-1/4
1-1/2
1-1/2
1-1/2

Outlet cold water pipe

inch
3/4
3/4
1
1-1/4
1-1/4
1-1/4
1-1/2
1-1/2
1-1/2

Water tube

inch
3/4"
1
1
1

Dimensions

Length A	Width B	Height C
1124	850	398
1124	850	398
1800	750	415
1800	750	415
1800	750	415
1800	750	415
1800	750	570
1800	750	570
1800	750	570

Weight: 65kg, 68kg, 75kg, 78kg, 80kg, 100kg, 105kg, 110kg, 110kg

Please contact KUEN LING Refrigeration Equipment Co., Ltd. Vietnam right away to receive a good product with a competitive price.
