TEMPERATURE AND HUMIDITY SENSOR

Product Description

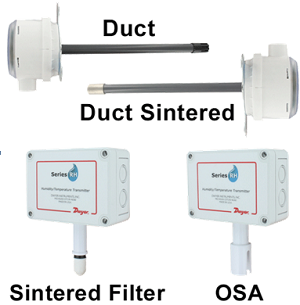

RHP SERIES are temperature and humidity sensors that provide output signals in voltage or current form. They can be used with removable temperature sensors such as passive temperature or RTD. The humidity sensor is a capacitive polymer capacitance sensor with an accuracy of 2%, 3%, or 5% depending on the requirements. The duct-mounted type can also include a 2-line LCD display.

Specifications

Relative Humidity Range: 0 to 100% RH.

Temperature Range: -40 to 140°F (-40 to 60°C).

Accuracy, RH:

RHP-2XXX ±2% 10 to 90% RH @ 25°C
RHP-3XXX ±3% 20 to 80% RH @ 25°C
RHP-5XXX ±5% 20 to 80% RH @ 25°C

Accuracy, Thermistor Temp Sensor: ±0.2°C @ 25°C (±0.36°F @ 77°F).

Accuracy, RTD Temp Sensor: DIN Class B ±0.3°C @ 0°C (±0.54°F @ 32°F).

Accuracy, Solid State Band Gap: ±0.9°F @ 77°F (±0.3°C @ 25°C).

Hysteresis: ±1%.

Repeatability: ±0.1% typical.

Temperature Limits: -40 to 140°F (-40 to 60°C).

Storage Temperature: -40 to 176°F (-40 to 80°C).

Compensated Temperature Range: -4 to 140°F (-20 to 60°C).

4 to 20 mA Loop Powered Models:

Power requirements: 10 to 35 VDC
Output signal: 4 to 20 mA

0-5/10 V Output Models:

Power requirements: 15 to 35 VDC or 15 to 29 VAC
Output signal: 0 to 10 V @ 5 mA max

Solid State Band Gap Temp Sensor Output Ranges:

Switchable, -20 to 140°F (-28.9 to 60°C)
0 to 100°F (-17.8 to 37.8°C)
40 to 90°F (4.4 to 32.3°C)
-4 to 140°F (-20 to 60°C)

Relative Humidity Range: 0 to 100% RH.

Temperature Range: -40 to 140°F (-40 to 60°C).

Accuracy, RH:

RHP-2XXX ±2% 10 to 90% RH @ 25°C
RHP-3XXX ±3% 20 to 80% RH @ 25°C
RHP-5XXX ±5% 20 to 80% RH @ 25°C

Accuracy, Thermistor Temp Sensor: ±0.2°C @ 25°C (±0.36°F @ 77°F).

Accuracy, RTD Temp Sensor: DIN Class B ±0.3°C @ 0°C (±0.54°F @ 32°F).

Accuracy, Solid State Band Gap: ±0.9°F @ 77°F (±0.3°C @ 25°C).

Hysteresis: ±1%.

Repeatability: ±0.1% typical.

Temperature Limits: -40 to 140°F (-40 to 60°C).

Application

Use in air savers.
Monitoring outdoor temperature and humidity.
Monitor indoor pool humidity.
