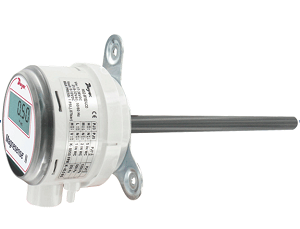

DWYER DIFFERENTIAL PRESSURE SENSOR

Specifications

Supported Baud Rates: 9600, 19200, 38400, 57600, 76800, 115200.
Data Size: 8.
Parity: None.
Stop Bits: 1.
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±1% FS for 0.15 in w.c. (40 Pa), 0.25 in w.c. (50 Pa), 0.5 in w.c. (100 Pa), 2 in w.c. (500 Pa), 3 in w.c. (750 Pa), 5 in w.c. (1250 Pa), 10 in w.c. (2 kPa), 15 in w.c. (3 kPa), 25 in w.c. (5 kPa), 28 in w.c. (6.975 kPa) ±2% FS for 0.1 in w.c. (25 Pa), 1 in w.c. (250 Pa), and all bi-directional ranges.
Stability: ±1% / year FSO.
Temperature Limits: 0 to 150°F (-18 to 66°C).
Pressure Limits: 1 psi max., operation 10 psi burst.
Power Requirement: 10 to 35 VDC (2-wire), 17 to 36 VDC or isolated 21.6 to 33 VAC (3-wire).
Output Signals: 4 to 20 mA (2-wire), 0 to 5 VDC, 0 to 10 VDC (3-wire).
Response Time: Adjustable: 0.5 to 15 sec. time constant. Provides a 95% response time of 1.5 to 45 seconds.
Zero & Span Adjustments: Digital push button.
Loop Resistance: Current Output: 0 to 1250 Ω max, Voltage Output: Min. load resistance 1 kΩ.
Current Consumption: 40 mA max.
Display (optional): 5 digit LCD.
Electrical Connection: 3-wire removable European style terminal block for 16 to 22 AWG.
Electrical Entry: 1/2″ NPS thread.
Process Connection: 3/16″ ID tubing (5 mm ID) Max. OD 9 mm.
Enclosure Rating: IP66.
Mounting Orientation: Diaphragm in vertical position.
Weight: 8.0 oz (230 g).

Application

Monitoring of static pressure in wind pipes.
Monitor the sieve status in the AHU.
Room pressure monitoring in pharmaceutical and electronic charging room applications.
Measure wind speed / flow rate in VAV system.
