MSB Total Electrical Cabinet

(0) 0 Reviews 0 Orders 0 Wish listed
Lead time 15 - 30 days (estimated)
Customization OEM/ODM (MOQ 500) Customized logo (MOQ 500)
Shipping Sea freight • Air freight • Express
Quantity :
Total price :
  (Tax : )
WhatsApp Zalo
Out of stock
Product specifications
Brand name
BBE Electricity Joint Stock Company

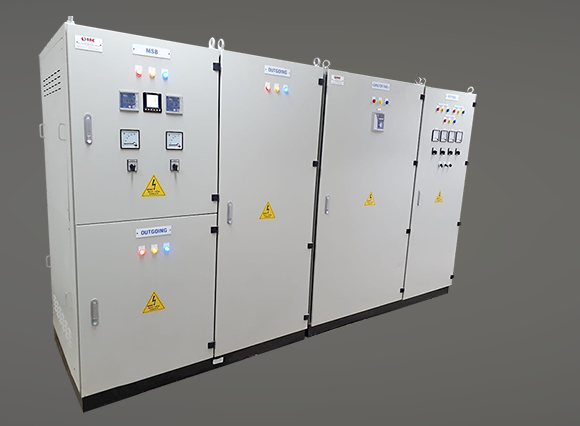

MSB TOTAL ELECTRICAL CABINET

The MSB cabinet is a versatile cabinet system designed to enhance safety and reliability for both floor and indoor installations. As one of the most reputable manufacturers, BBE is committed to providing MSB power distribution cabinets of the highest quality.

BBE - MSB 01

BBE - MSB 02

Specifications:

  • Application standard: IEC 61439-1/2
  • Protection grade: IEC 60529
  • Installation: Indoor
  • Rated insulation voltage (Ui): 1000V
  • Rated operational voltage (Ue): 415/690 VAC
  • Rated frequency (F): 50/60 Hz
  • Rated impulse withstand voltage (Uimp): 8 kV
  • Auxiliary circuit voltage: 230 VAC Max
  • Pollution degree: 3
  • Rated current (In): 6300 A
  • Rated current of vertical busbar: 6300 A
  • Rated short circuit withstand capacity (Icw) 3s: 65 kA rms
  • Peak short circuit current: 143 kA
  • Ground connection type: TNC
  • Current limit of input and output: 6300 A
  • Output motor power limit: Up to 250 kW 415/690 VAC

Dimensions:

  • Height (mm): 2000/2200/2400
  • Width (mm): 600/700/800/900/1000/1200
  • Depth (mm): 600/700/800/900/1000/1200/1400/1500/1600

Product features:

  • Modules: BBE - MSB 01, BBE - MSB 02, BBE - MSB 03
  • Modular structure can be expanded
  • Compartments in the cabinet and module are divided with metal plates
  • Electrical cabinets are naturally ventilated or forced with capacitor banks
  • Access to electrical cabinets: Doors or panels can be raised for front or back access
  • All metal surfaces are protected against corrosion. These parts are powder coated at a temperature of 2000C for 10 minutes to ensure hardness and high adhesion of the painted surface
  • Forms: 1 to 4b
  • Ingress protection: IP32 to IP54
  • Ambient temperature: From -500C to maximum +400C (average within 24 hours does not exceed +400C)
  • Height: Up to 2000m
  • Relative humidity: Maximum temperature +400C ≤ 50%, Temperature +200C ≤ 95%

Please contact us for more information!

BBE Electricity Joint Stock Company

BBE ELECTRIC JOINT STOCK COMPANY

First of all, BBE ELECTRIC JOINT STOCK COMPANY would like to send our respectful greetings, best wishes and best wishes to our customers every day in every aspect of their lives.

BBE ELECTRIC JOINT STOCK COMPANY is proud to be a MANUFACTURER OF HIGH QUALITY and CABLE TRAY LADDER in the South. So we are very confident and confirmed to bring customers the best Products - Services possible.

Along with continuous learning and innovative new advanced technology. With a team of technologically, dynamic, creative and skilled workers who have participated in many projects, large and small, contributed a small amount of effort to the process of completing civil construction works. and industry in the territory of Vietnam and Asian countries. With the purpose of providing solutions to save electricity, save initial investment costs, provide solutions for electrical panel system to be operated safely, permanently and continuously. We believe that you will feel satisfied and satisfied when you come to BBE PRODUCTS - SERVICES.

BBE introduces customers to the PRODUCTS - SERVICES that we are providing the current:

  • Low voltage switchboard MSB
  • Distribution cabinets MDB, DB
  • Switchboards automatically switch source - ATS
  • Cosφ power compensation cabinets automatically
  • Switchboard motor control - MCC, PLC
  • Electrical control panel sewage pump
  • Electrical cabinets control domestic water pump
  • Electric control cabinet submersible pump
  • Fire fighting control cabinet
  • Electric control cabinet lighting
  • Fan control cabinet
  • Manufacturing KIOS station cabinets, chassis electrical enclosures, outdoor electrical enclosures, PCCC enclosures, etc.
  • Manufacture cable ladder, punched cable tray, trunking and accessories
  • Supplying Transformers
  • Lowering the substation and installing the package VOLTAGE STATION
  • Provide industrial electrical equipment and auxiliary materials, electrical industry, ....
  • Processing of products related to sheet metal.

IN ADDITION TO BBE PROVIDES THE FOLLOWING SERVICES:

  • Technical consulting service
  • Service of designing electrical or mechanical drawings
  • Maintenance, repair electrical cabinet system for factories, buildings and trade centers periodically monthly, quarterly and yearly.
  • Provide additional services for electrical cabinets construction works.

With the business motto: "TOGETHER CONSTRUCTION AND SUSTAINABLE DEVELOPMENT"

It is always the business motto that BBE always insists on during the process of existence and development, because we understand that nothing is more precious than CUSTOMER.

The success and development of BBE yesterday and today is an honor.

We hope to receive the support and cooperation of our customers. Please contact us to meet the requirements of customers, use products and experience services that BBE provides.

Sincerely thank you for your interest.
