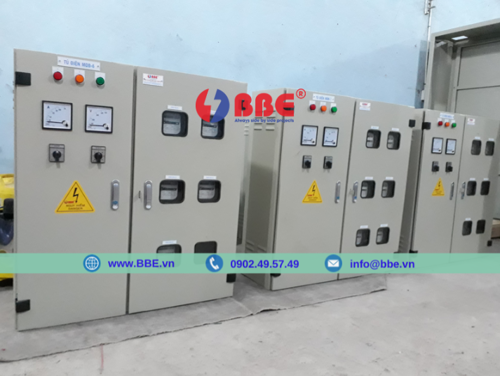

MDB POWER DISTRIBUTION CABINET

The MDB power distribution cabinet is the main distribution cabinet for low voltage power systems. BBE, as one of the most reputable manufacturers, is committed to providing MDB power distribution cabinets of the highest quality.

Specifications:

  • Application standard: IEC 61439-1/2
  • Protection grade: IEC 60529
  • Installation: Indoor or outdoor (standalone, wall-mounted, self-standing)
  • Rated insulation voltage (Ui): 1000V
  • Rated operational voltage (Ue): 415/690 VAC
  • Rated frequency (F): 50/60 Hz
  • Rated impulse withstand voltage (Uimp): 8KV
  • Auxiliary circuit voltage: 230 VAC Max
  • Pollution degree: 3
  • Rated current: 1600A
  • Rated current of vertical busbar: 1600A
  • Rated short circuit withstand capacity (Icw) 3s: 65 kA rms
  • Peak short circuit current: 85 kA
  • Ground connection type: TNC/TNS
  • Current limit of input and output: 1600A
  • Output motor power limit: Up to 250 kW 415/690 VAC
  • Protection level: IP 3X, 4X, 5X

Dimensions:

  • Overall height H (mm): 300, 400, 500, 600, 700, 800, 900, 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1700, 1800
  • Depth D (mm): 225÷325, 300÷500
  • Width W (mm): 500/600/700/800/900/1000
  • IP: 30/31/40/54
  • IK: 07/08/10

Product features:

Structure:

  • Main protective devices (ACB, MCCB)
  • Load protection devices (ACB, MCCB, MCB, ...)
  • Module can compensate capacitors, protective devices such as overcurrent relay, ground relay, overvoltage protection relay, low voltage relay, phase protection relay, etc.
  • The size of the cabinet should depend on the capacity of the cabinet.

Features of MDB main cabinet:

  • Distributed busbar is machined (punched and bent so there is no intermediate joint at the outlet reducing the possibility of failure due to temperature rise at the point of contact).
  • Large cabinet space is convenient for organizing wires.
  • MDB low-voltage cabinets can be installed floating or wall-mounted.
  • The circuit is clearly indicated and can be extended connection.
  • Designed according to international standards. The input of the cabinet can be fitted with many different electrical devices such as: Isolator, MCCB, MCB, ELCB or direct connection. Output is MCB, 1-pole or 3-pole din-rail type.
