ATS Control Panel

(0) 0 Reviews 0 Orders 0 Wish listed

Lead time	15 - 30 days (estimated)
Customization	OEM/ODM (MOQ 500) Customized logo (MOQ 500)
Shipping	Sea freight • Air freight • Express

Quantity :

Total price :

(Tax : )

WhatsApp Zalo

Product specifications

Brand name

PQS Commercial Technology Company Limited

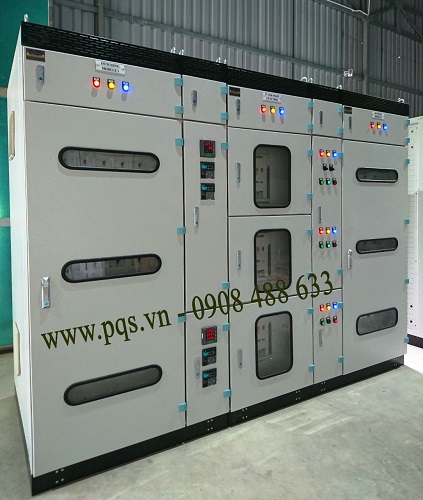

ATS CONTROL PANEL

ATS Control Panel (Automatic transfer switch Panel) is a cabinet designed to control automatic switching between the main source and the backup source, to ensure that the electrical system is always available.

Specifications

ATS expandable cabinet can control up to 3, 4 sources
Galvanized steel cabinet, powder coating, 1.2-2.5mm steel or stainless steel
Max wattage: 6300A
Polar number: 3P 5W or 1P 3W
Frequency: 50 Hz
Working temperature: 0-50 degrees C
Rated voltage: 380/400 / 420Vac
Insulation voltage: 690 / 1000Vac
Standing or wall mounted cabinets
Structure MCCBs / MCBs vertical or horizontal
Production standards: IEC 61439-1 / 2
Design symbol standard: IEC 60617
Protection standard: IEC 60529
Equipment standards: IEC 60947
Protection level: IP 2X, 3X, 42, 43, 54, 65
Form cabinets: 1, 2A, 2B, 3A, 3B, 4A, 4B
Integrated voltage, current, phase protection
Display information V, I, F, Cos, P, Q, S, THD, etc
Integrate remote monitoring and control via communication network

Use of the product

ATS cabinet is very important in hospitals, communication systems, especially in the military
Types of cabinets: integrated, using ACB, MCCB, using Contactor

Please contact us through our hotline or send us an e-mail for more information. We are very pleased to serve you!
